Few months ago I had problems to retrieve information from an Instagram account, after I debugged what was going on I found this warning: The remaining Instagram Legacy API permission ("Basic Permission") was disabled on June 29, 2020.

While I was researching about how to retrieve the feeds again I ended up in this thread: Is this www.instagram.com/username/?__a=1 is officially and allowed? where it looks like it's possible to retrieve the same feeds by consiming the Instagram page and appending `__a=1` as a query string.

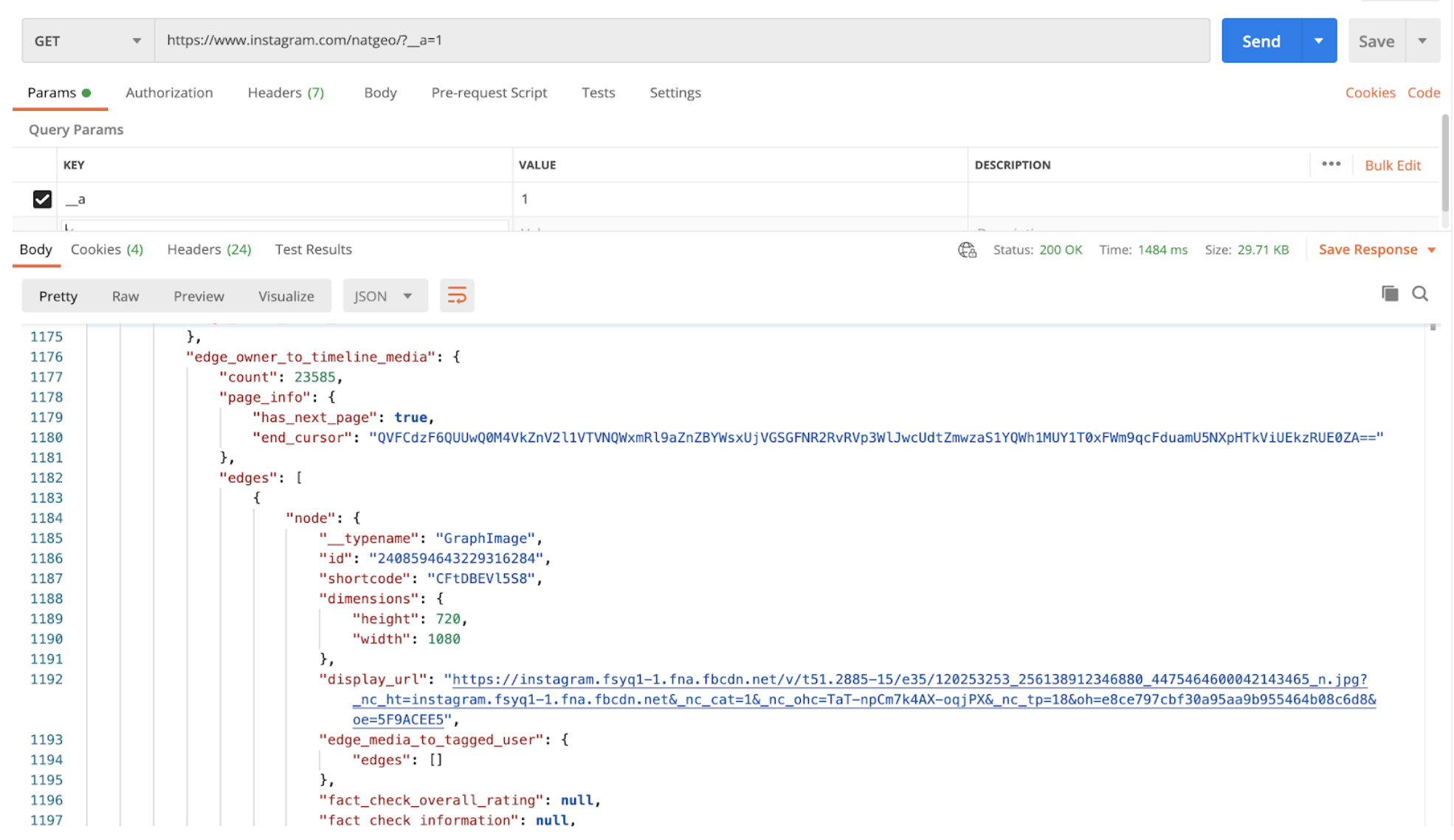

After I tested then I noticed it worked fine:

Since I was researching about GraphQL module and its possible implementation, then I realized here I could create an alternative way to retrieve the feeds by combining the  GraphQL Twig and GraphQL JSON modules.

I decided to create a new `@FieldFormatter` plugin where I can have a twig template and using GraphQL I would consume the URL by using an HTTP GET resquest. To verify I was able to do so, then I installed the three contributed modules I mentioned above.

Once those modules were installed, I jumped into the GraphiQL interface at `/graphql/explorer` to check if I was able to consume the JSON data, guess what, It was possible:

I noticed that I was able to send the "url" as a parameter to the query in order to retrieve the JSON data I was looking for. So I was ready to create the new custom module.

instagram_graphql

instagram_graphql.info.yml

I configured the new custom module and I was sure the dependencies was defined there.

name: Instagram GraphQL
type: module
description: 'Expose Instagram plugin formatter by GraphQL.'
package: KEBOCA
core: 8.x
dependencies:
  - graphql_twig
  - graphql_json

instagram_graphql.module

The must challeging piece here was to find out how to send variables into Twig template to be recognized by GraphQL in runtime. I didn't find documentation about how to do it, then I started to debug the code and I found "GraphQLTemplateTrait::display" is getting the context arguments by using "graphql_arguments" key from the theme definition.
Then TO MAKE IT WORKS we need to include "graphql_arguments" as a valid argument into our variable for the new theme definition:

<?php

/**
 * @file Contains Instagram GraphQL module.
 */

/**
 * Implements hook_theme().
 */
function instagram_graphql_theme($existing, $type, $theme, $path) {
  return [
    'instagram_graphql' => [
      'variables' => [
        'graphql_arguments' => [],
      ],
    ],
  ];
}

templates/instagram-graphql.html.twig

Let's summary what's happening here:

• I wrote the same query I build into the GraphQL Explorer
  • To make "$url" a valid parameter for GraphQL then I have to map it inside the "#graphql_arguments" key where I am using the drupal theme I made early (Details on next section).
• Next I retrieved the result from GraphQL by extracting them from "graphql.route.request.json.media"
• Walk-through the items to display an image tag plus a description.
  • The "sharedData" variable is another alternative to retrieve the same values.

{#graphql
query ($url: String!) {
  route(path: $url) {
    ... on ExternalUrl {
      request {
        json {
          ... on JsonObject {
            media:path(steps: ["graphql", "user", "edge_owner_to_timeline_media", "edges"]) {
              ... on JsonList {
                items {
                  ... on JsonObject {
                    owner:path(steps: ["node", "owner", "username"]) {
                      ... on JsonLeaf {
                        value
                      }
                    },
                    url:path(steps:["node", "display_url"]) {
                      ... on JsonLeaf {
                        value
                      }
                    },
                    caption:path(steps:["node", "accessibility_caption"]) {
                      ... on JsonLeaf {
                        value
                      }
                    },
                    description:path(steps:["node", "edge_media_to_caption", "edges", "0", "node", "text"]) {
                      ... on JsonLeaf {
                        value
                      }
                    }
                  }
                }
              }
            }
          }
        }
      }
    }
  }
}
#}

{% set media = graphql.route.request.json.media %}
<div{{ content_attributes.addClass('content') }}>
  {% for item in media.items %}

    <blockquote>
      <pre>{{ dump(sharedData[loop.index]) }}</pre>
      <img src="{{ item.url.value }}" alt="{{ item.caption.value }}"
           class="instagram-graphql instagram-{{ item.owner.value }}">
      <p>{{ item.description.value }}</p>
    </blockquote>

  {% endfor %}
</div>

src/Plugin/Field/FieldFormatter/InstagramGraphQLFormatter.php

To complete the task I created the formatter plugin to allow any string field type to display the GraphQL template, it defines the template on each item. However the magic happens here because I need to create the "#graphql_arguments" key as an array where I can inject the "url" value to be used on GraphQL Twig.
Besides I am including another variable named: "sharedData" which's another alternative to consume the same URL but by using raw PHP instead (if something goes wrong, we need a plan B).

<?php

namespace Drupal\instagram_graphql\Plugin\Field\FieldFormatter;

use Drupal\Component\Utility\NestedArray;
use Drupal\Core\Field\FieldItemListInterface;
use Drupal\Core\Field\FormatterBase;

/**
 * Plugin implementation of the 'Instagram GraphQL' formatter.
 *
 * @FieldFormatter(
 *   id = "instagram_graphql_formatter",
 *   label = @Translation("Instagram GraphQL"),
 *   field_types = {
 *     "string"
 *   }
 * )
 */
class InstagramGraphQLFormatter extends FormatterBase {

  /**
   * {@inheritdoc}
   */
  public function viewElements(FieldItemListInterface $items, $langcode) {
    $element = [];

    foreach ($items as $delta => $item) {
      $element[$delta] = [
        '#theme' => 'instagram_graphql',
        '#graphql_arguments' => [
          'url' => "https://www.instagram.com/{$item->value}/?__a=1",
          'sharedData' => $this->getSharedData($item->value),
        ],
      ];
    }

    return $element;
  }

  /**
   * Another fancy way to extract the data from Instagram.
   *
   * @param string $username
   *
   * @return mixed
   */
  protected function getSharedData($username) {
    $url     = sprintf("https://www.instagram.com/$username");
    $content = file_get_contents($url);
    $content = explode("window._sharedData = ", $content)[1];
    $content = explode(";</script>", $content)[0];
    $data    = json_decode($content, true);
    $rawData = NestedArray::getValue($data, [
      'entry_data',
      'ProfilePage',
      0,
      'graphql',
      'user',
      'edge_owner_to_timeline_media',
      'edges',
    ]);
    return array_map(function($item) {
      return [
        'owner' => NestedArray::getValue($item, [
          'node',
          'owner',
          'username',
          ]),
        'url' => NestedArray::getValue($item, [
          'node',
          'display_url',
        ]),
        'caption' => NestedArray::getValue($item, [
          'node',
          'accessibility_caption',
        ]),
        'description' => NestedArray::getValue($item, [
          'node',
          'edge_media_to_caption',
          'edges',
          0,
          'node',
          'text',
        ]),
      ];
    }, $rawData ?? []);
  }

}

It should be enough to retrieve the feeds from Instagram while we mix different technologies: GraphQL, Twig and PHP. At the end, we can configure a text field to use our new formatter:


As soon as we create a new content and fill out the field with a valid Instagram Account:

Once you save it the you can see it as shown below:

As an example there are only two records display in the screenshot, but you may notice the "dump" with details from "sharedData" variable first, then the image tag and a description. From here, we can give the style we need to our feeds.

Hope, it helps someone else out there in the wild!

Happy coding!

PD: I created a repository with everything together. Here you may see the custom module here. To the grand finale I added an eastern egg on the last commit (Plan C by using Javascript).
